Product Description

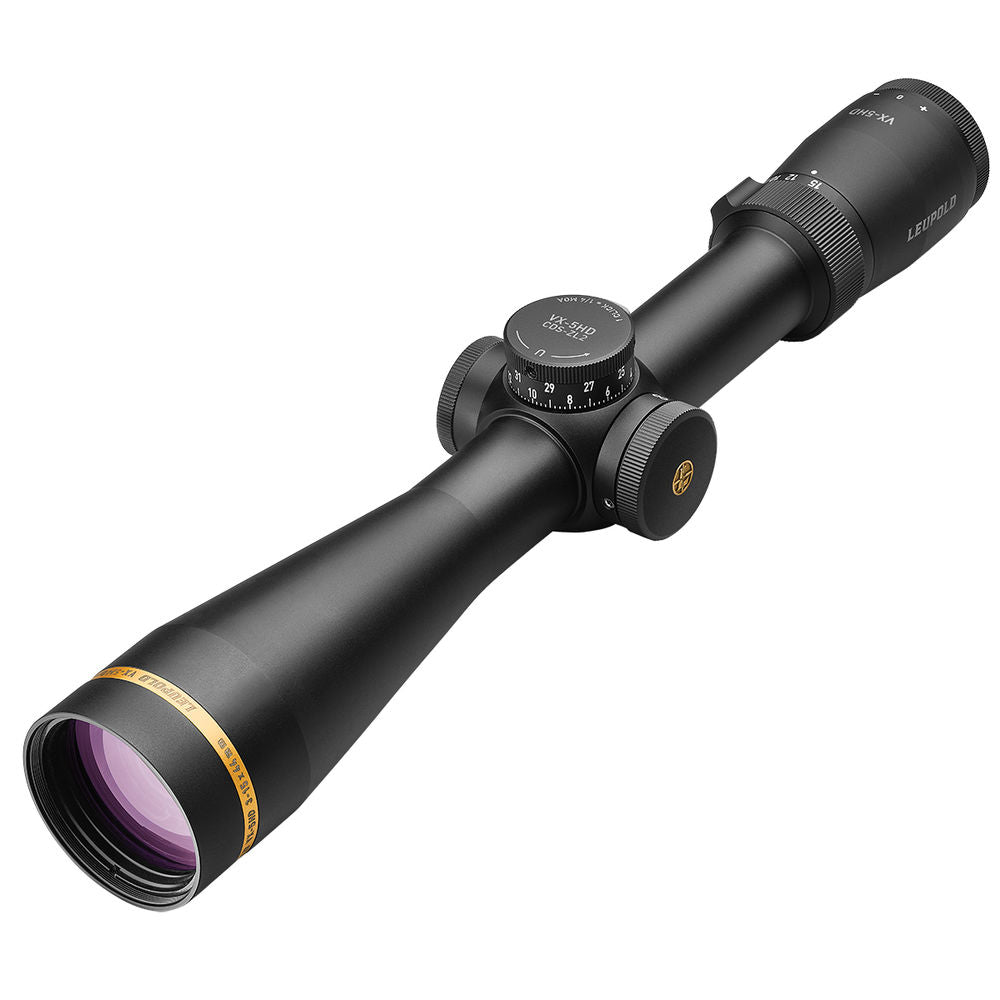

VX-5HD Optic
The VX-5HD is taking optical performance to a whole new level. We gave it a High-Definition optical system for sharpened clarity, and the Twilight Max™ Light Management System for even greater low-light performance, giving hunters a visible advantage at dawn and dusk when the biggest game is on the move. The new CDS-ZL2 (Custom Dial System ZeroLock 2) elevation dial locks in place so it cannot be inadvertently rotated off zero. A mere press of a button will allow the user to dial up two turns of elevation, if necessary. On the 2nd revolution of the elevation dial, the button sinks in to show you are on the 2nd turn so you can dial for extended ranges and never lose your place. The covered pop-up windage dial provides fast and accurate sight-in and easy rezero. All VX-5HD CDS-ZL2 riflescopes include one free Custom Ballistic Dial with purchase.
Description:
- 5:1 Zoom Ratio: A versatile 5:1 zoom ratio gives you 5 times more magnification at high power than at low power (model magnification ranges may be available in powers of 5x: 1-5, 2-10, 3-15, 4-20, etc.), so you can adjust your magnification to find the perfect balance between magnification and field of view for any situation. The larger the zoom ratio, the more versatile one scope can be
- Professional-Grade Optical System: Leupold’s Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field
- Side Focus: The side focus adjusts the scope's parallax, making the reticle clearer and have less perceived movement when you're shooting at different distances
- Custom Dial System: Leupold's Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on
- CDS-ZL2 Elevation Dial: The CDS-ZL2 (ZeroLock 2) provides two revolutions of elevation adjustment while eliminating accidental dial movement with the push-button ZeroLock system. It also features Leupold's award-winning Custom Dial System® (CDS®), which allows shooters to order a laser-marked bullet-drop dial to match their exact ballistics and conditions
- Second Focal Plane: In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation
- Zero Lock Dial: The ZeroLock® system eliminates accidental dial movement by locking it in place
- Zero Stop: The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction
- Guard-Ion: Guard-ion is a hydrophobic lens coating that sheds dirt and water for a maintenance-free, clear, crisp image
-
Waterproof, Fogproof, & Shockproof: Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life
Specifications:
- Linear FOV (ft/100 yd) - Low 38.2
- Linear FOV (m/100 m) - Low 12.7
- Linear FOV (ft/100 yd) - High 7.9
- Linear FOV (m/100 m) - High 2.5
- Weight (oz) 19.0
- Weight (g) 539
- Objective Clear Aperture (in) 1.7
- Eye Relief (mm) - Low 97
- Eye Relief (in) - Low 3.8
- Eye Relief (mm) - High 94
- Eye Relief (in) - High 3.7
- Elevation Adjustment Range (MOA) 75
- Windage Adjustment Range (MOA) 75
- Length (mm) 343
