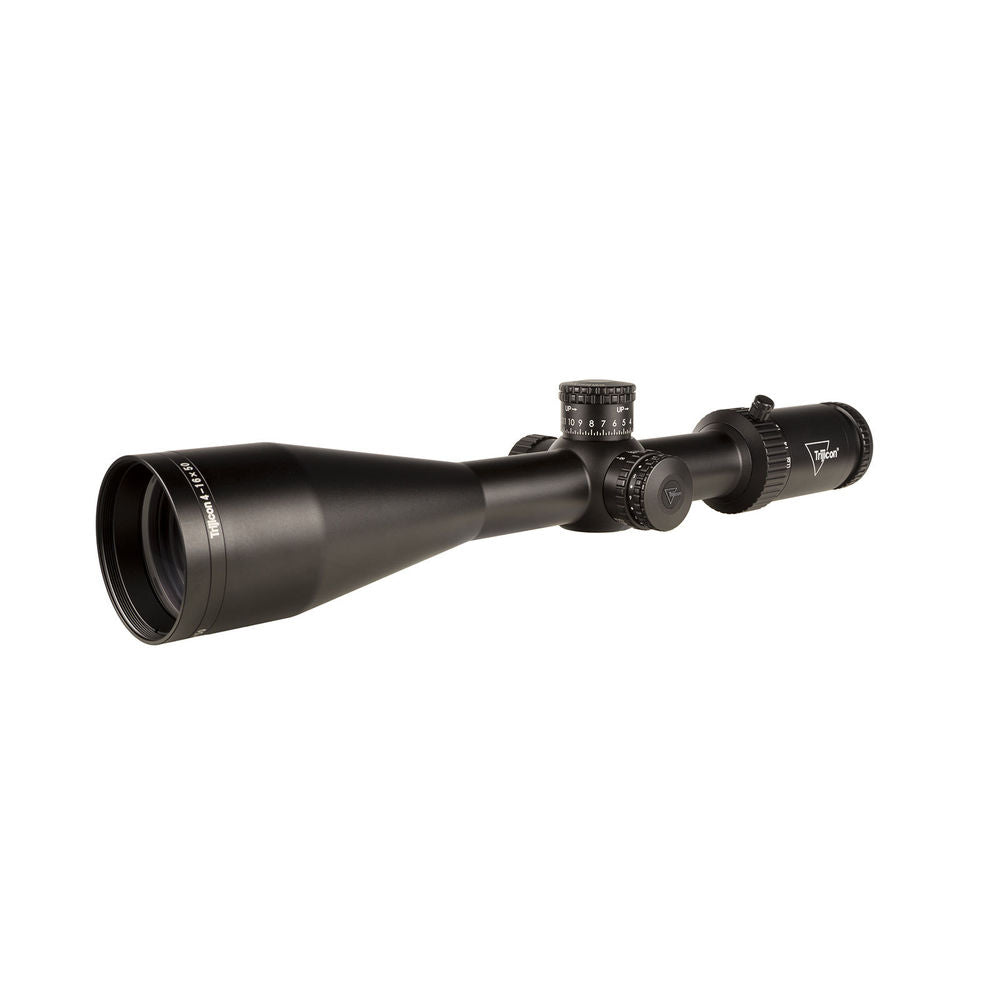

Credo™ Hx 4-16x50mm Optic - Red Moa Center Dot Reticle


Brand: Trijicon

Product Description

Credo™ HX 4-16x50


Designed specifically for long-range hunting, the Trijicon Credo™ HX 4-16x50 optic offers a choice of exposed or capped adjusters that are precise and repeatable. The tough-as-nails aircraft-grade aluminum housing will withstand the rigors of the hunt, and the illuminated reticle options give you the advantages of fast, accurate shot placement. Carry more out than you carried in.


  • "Both-Eyes-Open" Targeting: Illuminated reticles provide a clear aiming point that draws the Marksmen’s eye for fast engagement
  • Confident Aiming in any light: User-selectable LED brightness settings with an “off” in between each setting to adapt to any environment
  • Purpose-Driven Design: Sleek finish and low-profile controls prevent snagging. Choice of first or second focal plane models.
  • Quick Target Acquisition: Proven reticle designs for the most discerning hunters, ensuring fast ranging and holdovers
  • Edge-to-edge Clarity: Fully multi-coated, broadband, anti-reflective glass provides excellent light transmission, true detail and color with zero distortion
  • Ultra Durable for ensured Reliability: Ruggedized design engineered to withstand extreme hunting conditions and tested to military standards and protocols
  • Quick & Easy Adjustments: Crisp, precise, windage/elevation adjusters require no tools. Capped or zero stop adjusters ensure no accidental shift.
  • Repositionable Magnification Lever: Accommodates different positions and platform configurations.
  • Bikini Caps
  • Scopecoat™
  • 3mm Hex Key
  • 1.5mm Hex Key
  • Repositionable Magnification Knob and Replacement Screw
  • 1 CR2032 Battery
  • Quick Reference Guide
  • Warranty Card
  • Vinyl Logo Sticker


  • Length x Width x Height 14.5 in x 3.1 in x 2.1 in (368.3mm x 78.74mm x 53.34mm)
  • Weight 25.5 oz. (722.91g)
  • Magnification 4-16x
  • Objective Size 50mm
  • Tube Size 30mm
  • Reticle Pattern MOA Center Dot
  • Day Reticle Color Red
  • Focal Plane Second
  • Illumination Source LED
  • Illumination Settings 10
  • Power Source 1 CR2032
  • Battery Life 68 hours
  • Adjustment 1/4 MOA per click
  • Adjustment Range 70 MOA Total Travel
  • Eye Relief 3.1 in. - 3.8 in. (78.74mm - 96.52mm)
  • Exit Pupil 0.33 in. - 0.12 in. (8.38mm - 3.05mm)
  • Field of View (degrees) 5.43° - 1.36°
  • Field of View (feet) 28.5 ft. - 7.1 ft. @ 100 yds. (9.5 - 2.37m @ 100m)
  • Housing Material 6061 Aircraft Grade Aluminum
  • Finish Satin Black
