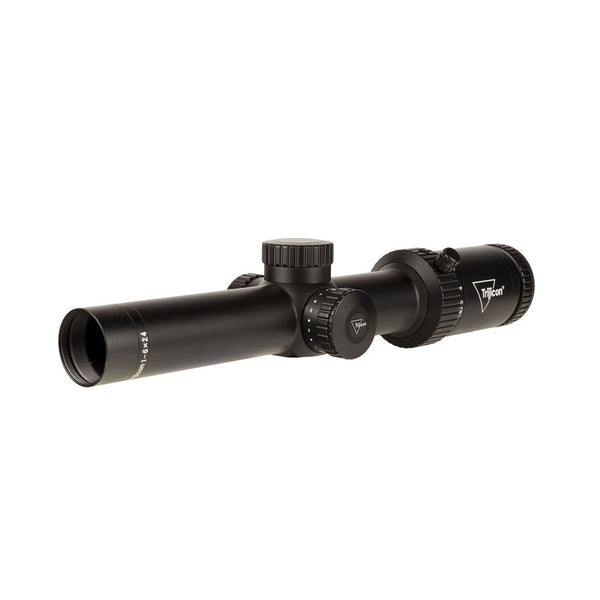

Credo™ Hx 1-6x24mm Optic - Green Moa Segmented Circle, Illuminated Led, Ffp, Satin Black


Brand: Trijicon

Product Description

Credo™ HX 1-6x24


First Focal Plane (FFP) Optic w/ Green MOA Segmented Circle, 30mm Tube, Satin Black, Low Capped Adjusters


Designed specifically for hunting hogs, varmint and whitetail, the Trijicon Credo™ HX 1-6x24 gives you everything you want in a 1-6x hunting optic: lightweight durability, brilliant illumination and excellent glass. Choose from either first or second focal plane models with reticles designed for quick and accurate shot placement. The fully multi-coated glass ensures true color and detail and confidence in any light.



  • "Both-Eyes-Open" Targeting: Illuminated reticles provide a clear aiming point that draws the Marksmen’s eye for fast engagement
  • Confident Aiming in any light: User-selectable LED brightness settings with an “off” in between each setting to adapt to any environment
  • Purpose-Driven Design: Sleek finish and low-profile controls prevent snagging. Choice of first or second focal plane models.
  • Quick Target Acquisition: Proven reticle designs for the most discerning hunters, ensuring fast ranging and holdovers
  • Edge-to-edge Clarity: Fully multi-coated, broadband, anti-reflective glass provides excellent light transmission, true detail and color with zero distortion
  • Ultra Durable for ensured Reliability: Ruggedized design engineered to withstand extreme hunting conditions and tested to military standards and protocols
  • Quick & Easy Adjustments: Crisp, precise, windage/elevation adjusters require no tools. Capped or zero stop adjusters ensure no accidental shift.
  • Repositionable Magnification Lever: Accommodates different positions and platform configurations
  • Bikini Caps
  • Scopecoat™
  • 3mm Hex Key
  • Repositionable Magnification Knob and Replacement Screw
  • 1 CR2032 Battery
  • Quick Reference Guide
  • Warranty Card
  • Vinyl Logo Sticker


  • Magnification: 1-6x
  • Tube Size: 30mm
  • Finish: Satin Black
  • Length x Width x Height: 10.9 in x 2.8 in x 2 in (276.86mm x 71.12mm x 50.8mm)
  • Day Reticle Color: Green
  • Illumination Source: LED
  • Power Source: 1 CR2032
  • Adjustment: 1/4 MOA per click
  • Eye Relief: 3.5 in. - 3.9 in. (88.9mm - 99.06mm)
  • Field of View (degrees): 21.4° - 3.58°
  • Housing Material: 6061 Aircraft Grade Aluminum
  • Weight: 18.3 oz. (518.8g)
  • Objective Size: 24mm
  • Reticle Pattern: MOA Segmented Circle
  • Focal Plane: First
  • Illumination Settings: 10
  • Battery Life: 198 hours
  • Adjustment Range: 100 MOA Total Travel
  • Exit Pupil: 0.47 in. - 0.16 in. (11.94mm - 4.06mm)
  • Field of View (feet): 113.4 ft. - 18.8 ft. @ 100 yds. (34.56 - 5.73m @ 100m)
