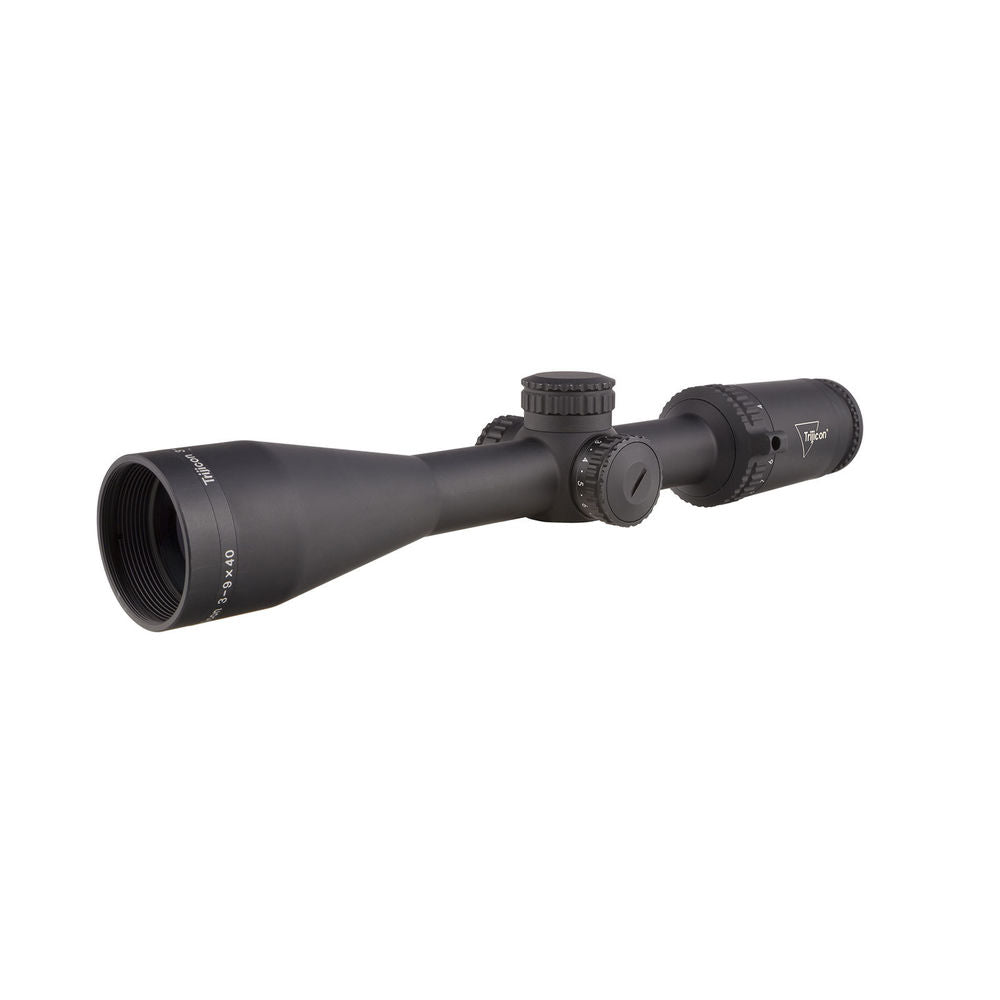

Credo™ 3-9x40 Optic
The Trijicon Credo™ 3-9x40 optic gives you tough-as-nails housing with an illuminated reticle and adjustable brightness settings. Featuring ultra-lightweight aircraft grade aluminum and an anti-scratch coating, the Credo 3-9x40 is a proven workhorse. The LED reticle is available in either red or green, allowing you to use Trijicon’s Bindon Aiming Concept (BAC) and for improved target contrast. Use Trijicon® 1" rings or quick-release mount to match your platform platform.
NOTE: Credo 3-9x40 models feature a single position magnification lever
- Illuminated reticles provide a clear aiming point that draws the marksmen’s eye for fast engagement.
- Ruggedized design engineered to withstand extreme conditions and tested to military standards and protocols.
- Matte finish and easy-grip controls for fast, intuitive adjustments.
- Diopter accommodates the marksmen’s individual prescription.
- User-selectable LED brightness settings with an “off” in between each setting to adapt to any environment.
- Fully multi-coated, broadband, anti-reflective glass provides excellent light transmission, true detail and color with zero distortion.
- Choose from a variety of specially engineered reticle designs for fast ranging and holdovers.
- Crisp, precise, windage/elevation adjusters require no tools. Capped, locking or zero stop adjusters ensure no accidental shift.
- Extra-wide field of view for maximum situational awareness.
- Accommodates different positions and platform configurations.
- Bikini Caps
- 1 CR2032 Battery
- Quick Reference Guide
- Warranty Card
- Vinyl Logo Sticker
- Length x Width x Height 12.3 in x 2.5 in x 2.2 in (312.42mm x 63.5mm x 55.88mm)
- Weight 17.02 oz. (482.51g)
- Magnification 3-9x
- Objective Size 40mm
- Tube Size 1 in.
- Reticle Pattern Standard Duplex Crosshair
- Day Reticle Color Red
- Focal Plane Second
- Illumination Source LED
- Illumination Settings 11
- Power Source 1 CR2032
- Battery Life 68 hours
- Adjustment 1/4 MOA per click
- Adjustment Range 50 MOA Total Travel
- Eye Relief 3.5 in. - 3.7 in. (88.9mm - 93.98mm)
- Exit Pupil 0.52 in. - 0.17 in. (13.21mm - 4.32mm)
- Field of View (degrees) 6.75° - 2.25°
- Field of View (feet) 35.5 ft. - 11.8 ft. @ 100 yds. (11.83 - 3.93m @ 100m)
- Housing Material 6061 Aircraft Grade Aluminum
- Finish Matte Black
