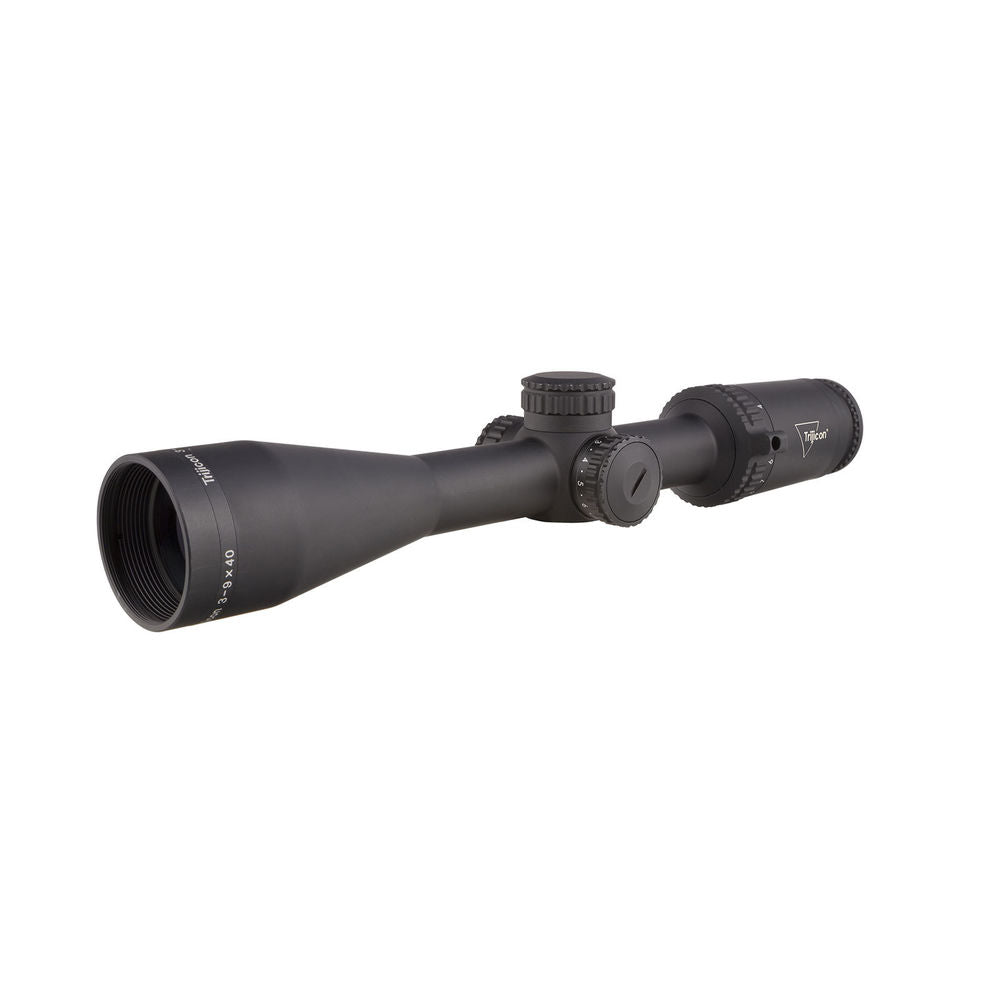

Credo™ 3-9x40 Optic - Matte, Green Reticle


Brand: Trijicon

Product Description

Credo™ 3-9x40 Optic


The Trijicon Credo™ 3-9x40 Optic gives you tough-as-nails housing with an illuminated reticle and adjustable brightness settings. Featuring ultra-lightweight aircraft grade aluminum and an anti-scratch coating, the Credo 3-9x40 is a proven workhorse. The LED reticle is available in either red or green, allowing you to use Trijicon’s Bindon Aiming Concept (BAC) and for improved target contrast. Use Trijicon® 1" rings or quick-release mount to match your firearm platform.

NOTE: Credo 3-9x40 models feature a single position magnification lever.



  • Illuminated reticles provide a clear aiming point that draws the Marksmen’s eye for fast engagement.
  • Ruggedized design engineered to withstand extreme conditions and tested to military standards and protocols.
  • Matte finish and easy-grip controls for fast, intuitive adjustments.
  • Diopter accommodates the Marksmen’s individual prescription.
  • User-selectable LED brightness settings with an “off” in between each setting to adapt to any environment.
  • Fully multi-coated, broadband, anti-reflective glass provides excellent light transmission, true detail and color with zero distortion.
  • Choose from a variety of specially engineered reticle designs for fast ranging and holdovers.
  • Crisp, precise, windage/elevation adjusters require no tools. Capped, locking or zero stop adjusters ensure no accidental shift.
  • Extra-wide field of view for maximum situational awareness.
  • Accommodates different  positions and platform configurations.
  • Bikini Caps
  • Scopecoat™
  • 1 CR2032 Battery
  • Quick Reference Guide
  • Warranty Card
  • Vinyl Logo Sticker


  • Length x Width x Height 12.3 in x 2.5 in x 2.2 in (312.42mm x 63.5mm x 55.88mm)
  • Weight 17.02 oz. (482.51g)
  • Magnification 3-9x
  • Objective Size 40mm
  • Tube Size 1 in.
  • Reticle Pattern MOA Precision Hunter
  • Day Reticle Color Green
  • Focal Plane Second
  • Illumination Source LED
  • Illumination Settings 11
  • Power Source 1 CR2032
  • Battery Life 198 hours
  • Adjustment 1/4 MOA per click
  • Adjustment Range 50 MOA Total Travel
  • Eye Relief 3.5 in. - 3.7 in. (88.9mm - 93.98mm)
  • Exit Pupil 0.52 in. - 0.17 in. (13.21mm - 4.32mm)
  • Field of View (degrees) 6.75° - 2.25°
  • Field of View (feet) 35.5 ft. - 11.8 ft. @ 100 yds. (11.83 - 3.93m @ 100m)
  • Housing Material 6061 Aircraft Grade Aluminum
  • Finish Matte Black
