Credo™ 1-8x28 Optic - Matte, Red-green Reticle


Brand: Trijicon

Product Description

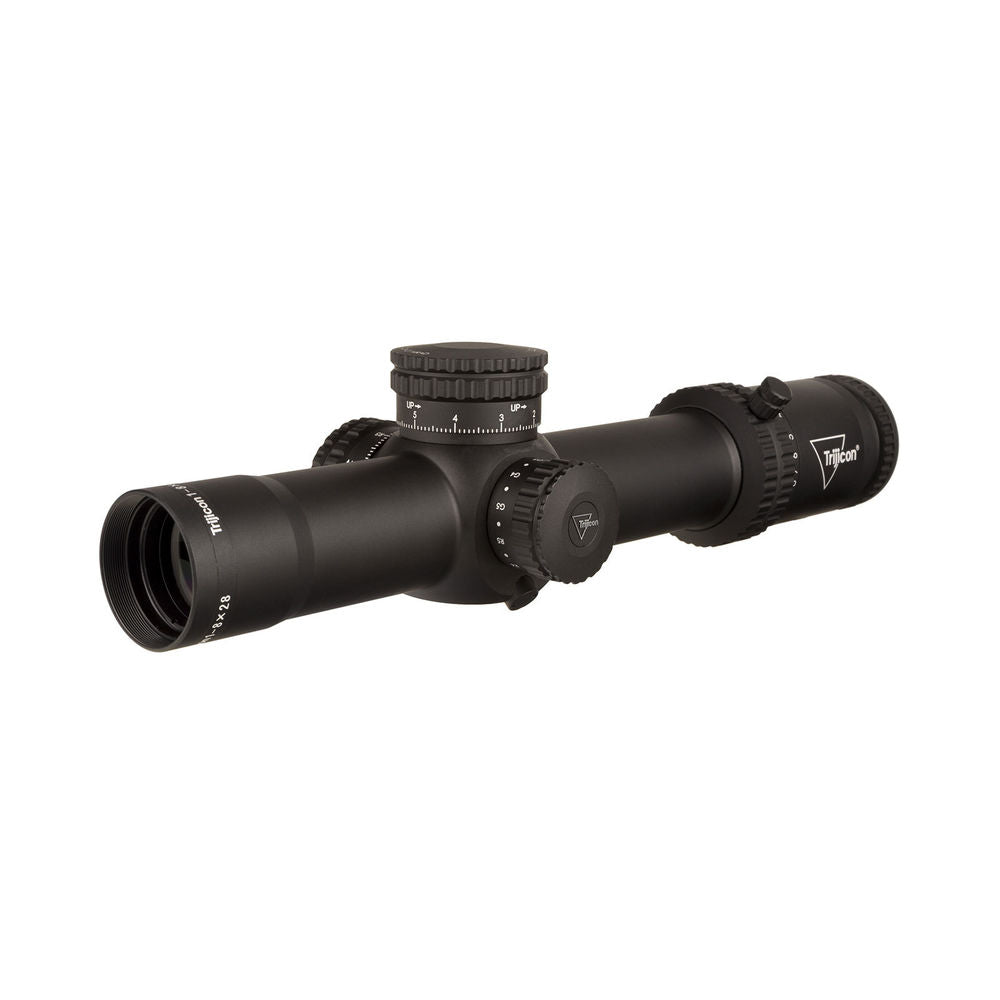

Credo™ 1-8x28 Optic


Get rapid target engagement and long-range precision from the same optic—the Trijicon Credo™ 1-8x28. A favorite among competitive shooters and tactical users, this is our finest low power variable optic. The Credo 1-8x28 gives you fully multi-coated, broadband, anti-reflective glass, a 34mm tube and a 28mm objective lens for improved exit pupil and low light performance. The dual red/green illuminated MRAD Segmented Circle reticle is designed for CQB and distance shooting in any environment. Target with confidence.



  • Illuminated reticles provide a clear aiming point that draws the shooter’s eye for fast engagement.
  • Ruggedized design engineered to withstand extreme conditions and tested to military standards and protocols.
  • Matte finish and easy-grip controls for fast, intuitive adjustments.
  • Diopter accommodates the shooter’s individual prescription.
  • User-selectable LED brightness settings with an “off” in between each setting to adapt to any environment.
  • Fully multi-coated, broadband, anti-reflective glass provides excellent light transmission, true detail and color with zero distortion.
  • Choose from a variety of specially engineered reticle designs for fast ranging and holdovers.
  • Crisp, precise, windage/elevation adjusters require no tools. Capped, locking or zero stop adjusters ensure no accidental shift.
  • Extra-wide field of view for maximum situational awareness.
  • Accommodates different shooting positions and rifle configurations.
  • Bikini Caps
  • Scopecoat™
  • 3mm Hex Key
  • Repositionable Magnification Knob and Replacement Screw
  • 1 CR2032 Battery
  • Quick Reference Guide
  • Warranty Card
  • Vinyl Logo Sticker


  • Length x Width x Height 10.8 in x 3.2 in x 2.6 in (274.32mm x 81.28mm x 66.04mm)
  • Weight 25.6 oz. (725.75g)
  • Magnification 1-8x
  • Objective Size 28mm
  • Tube Size 34mm
  • Reticle Pattern MRAD Segmented Circle
  • Day Reticle Color Red / Green
  • Focal Plane First
  • Illumination Source LED
  • Illumination Settings 5 red and 5 green
  • Power Source 1 CR2032
  • Battery Life Red: 39 hours, Green: 94 hours
  • Adjustment 0.1 MRAD per click
  • Adjustment Range 29.1 MRAD Total Travel
  • Eye Relief 3 in. - 4 in. (76.2mm - 101.6mm)
  • Exit Pupil 0.46 in. - 0.14 in. (11.68mm - 3.56mm)
  • Field of View (degrees) 20° - 2.53°
  • Field of View (feet) 105.8 ft. - 13.2 ft. @ 100 yds. (35.27 - 4.4m @ 100m)
  • Housing Material 6061 Aircraft Grade Aluminum
  • Finish Matte Black
