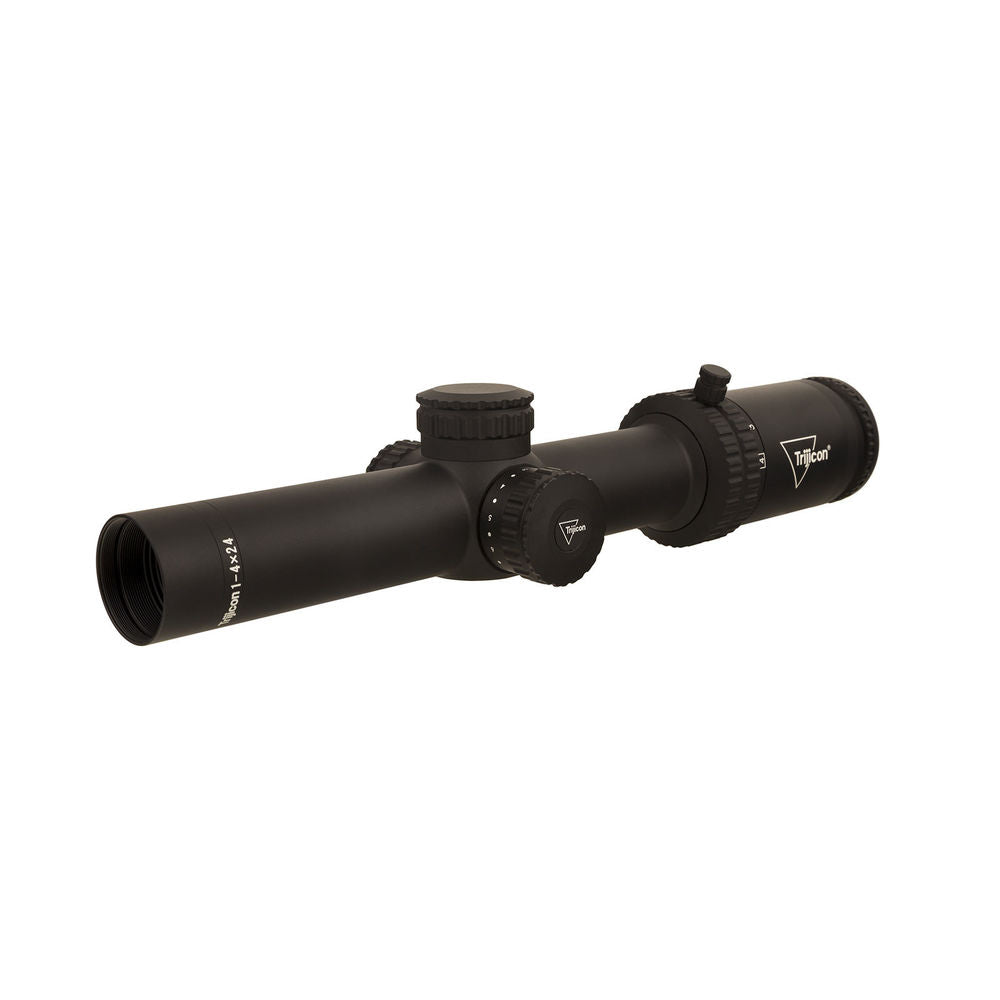

Credo™ 1-4x24 Optic - Matte, Green Reticle


Brand: Trijicon

Product Description

Credo™ 1-4x24 Optic


Whether you’re hitting steel at a match or punching paper on range day, the Credo™ 1-4x24 low power variable optic gives you versatile, accurate precision you can trust. It features true 1x magnification and an extra-wide field of view with an illuminated BDC Segmented Circle reticle ideal for CQB applications.


  • Illuminated reticles provide a clear aiming point that draws the shooter’s eye for fast engagement.
  • Ruggedized design engineered to withstand extreme conditions and tested to military standards and protocols.
  • Matte finish and easy-grip controls for fast, intuitive adjustments.
  • Diopter accommodates the shooter’s individual prescription.
  • User-selectable LED brightness settings with an “off” in between each setting to adapt to any environment.
  • Fully multi-coated, broadband, anti-reflective glass provides excellent light transmission, true detail and color with zero distortion.
  • Choose from a variety of specially engineered reticle designs for fast ranging and holdovers.
  • Crisp, precise, windage/elevation adjusters require no tools. Capped, locking or zero stop adjusters ensure no accidental shift.
  • Extra-wide field of view for maximum situational awareness.
  • Accommodates different shooting positions and rifle configurations.
  • Bikini Caps
  • Scopecoat™
  • 3mm Hex Key
  • Repositionable Magnification Knob and Replacement Screw
  • 1 CR2032 Battery
  • Quick Reference Guide
  • Warranty Card
  • Vinyl Logo Sticker


  • Length x Width x Height 10.5 in x 2.7 in x 1.9 in (266.7mm x 68.58mm x 48.26mm)
  • Weight 17.1 oz. (484.78g)
  • Magnification 1-4x
  • Objective Size 24mm
  • Tube Size 30mm
  • Reticle Pattern MRAD Ranging
  • Day Reticle Color Green
  • Focal Plane Second
  • Illumination Source LED
  • Illumination Settings 10
  • Power Source 1 CR2032
  • Battery Life 198 hours
  • Adjustment 0.1 MRAD per click
  • Adjustment Range 29.1 MRAD Total Travel
  • Eye Relief 2.6 in. - 3.9 in. (66.04mm - 99.06mm)
  • Exit Pupil 0.69 in. - 0.2 in. (17.53mm - 5.08mm)
  • Field of View (degrees) 18° - 4.6°
  • Field of View (feet) 95 ft. - 24.2 ft. @ 100 yds. (31.67 - 8.07m @ 100m)
  • Housing Material 6061 Aircraft Grade Aluminum
  • Finish Matte Black
